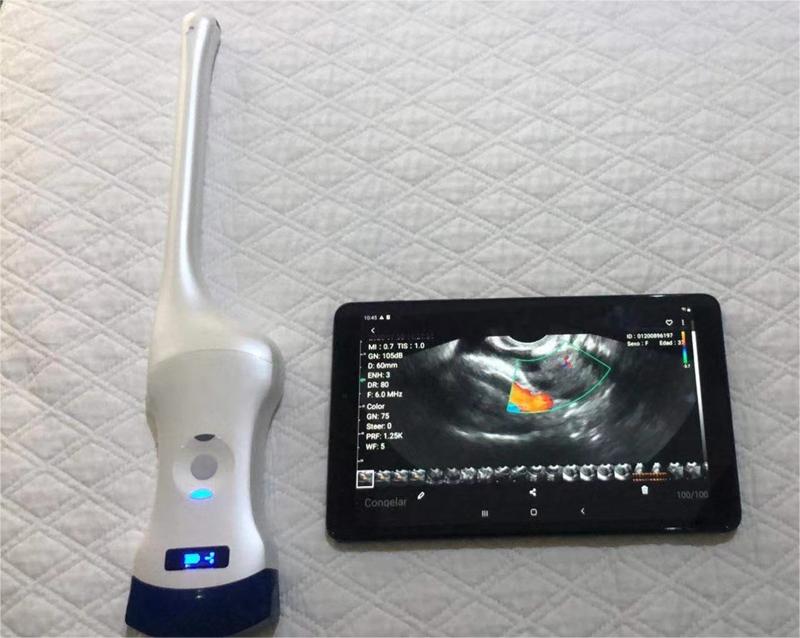

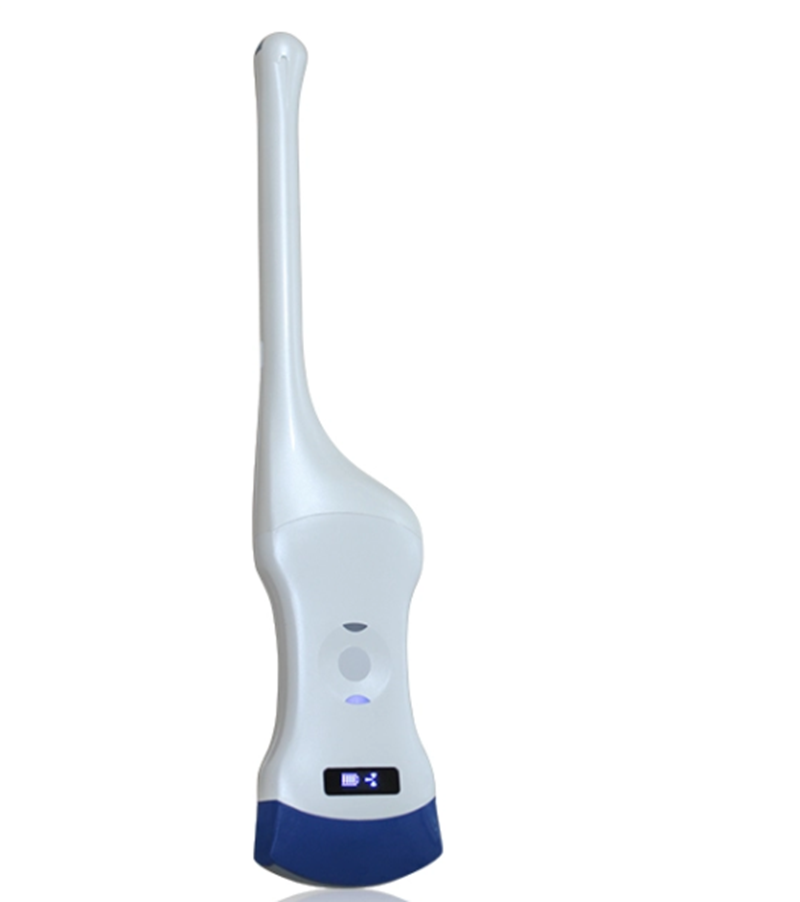

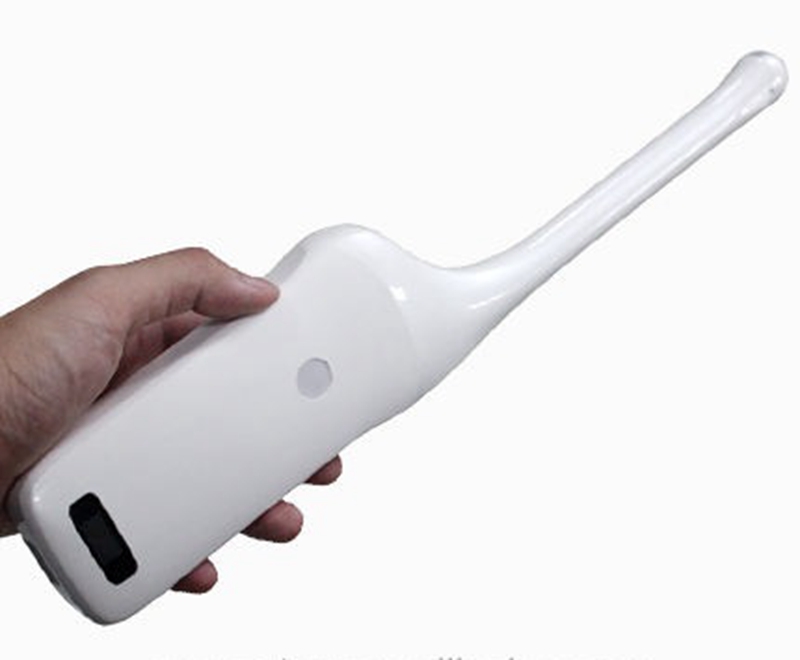

2 in 1 Probe Intracavitary & Linear Array Wireless Ultrasound uRason W9
-Probe Type: Consist by two of Convex, Microconvex, Linear, Small Linear, Transvaginal
-Scanning mode: Electronic array
-Display mode: B, B/M, color doppler version with B+Color, B+PDI, B+PW
-Probe element: 128
-Channel of RF circuit board: 32
-Probe frequency and scan depth, head radius/width, scan angle(convex):
Convex head 3.5MHz/5MHz, 90/160/220/305mm, 60mm, 60°
Convex head with phased array(cardiac) scan mode: 3.5MHz/5MHz, 90/160/220/305mm, 40mm, 90°
Linear head 7.5MHz/10MHz, 20/40/60/100mm, 40mm
Small Linear head 10MHz/14MHz, 20/30/40/55mm, 25mm
Microconvex head 3.5MHz/5MHz, 90/130/160/200mm, 20mm, 88°
Transvaginal head 6.5MHz/8MHz, 40/60/80/100mm, 13mm, 149°
-Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
-Cineplay: auto and manual, frames can set as 100/200/500/1000
-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
-Measure: Length, Area, Angle, heart rate, Obstetrics
-Image save: jpg, avi and DICOM format
-Image frame rate: 18 frames/second
-Battery working time: 2.5 hours(according to whether keep scan)
-Battery charge: by USB charge or wireless charge, take 2 hours
-Dimension: L156×W60×H20mm(if with transvaginal head length is 270mm)
-Weight: 250g
-Wifi type: 802.11g/20MHz/5G/450Mbps
FAQ
1. What is the probe elements?
uRason W9 is 128 elements.
2. Should I bought a software to use your measurement equipment?
No, it is free app.
3. How long can I get the probe?
Stock goods ready to ship. If by express service, the shipping time is about one week.
4. What is the carton size for this probe?
Yes, the carton size is 25cm*12cm*12cm and the weight is 1KG.
