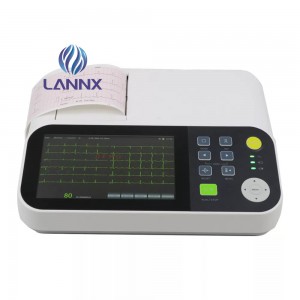

Hopital Use Ambulatory 6 Channel portable ECG machine uECG Y6
ECG waveform measurement
Heart rate range：:30BPM~300BPM
Calculation accuracy of heart rate：±1 BPMRecorder
Recording mode： High resolution thermal printer
Paper speed：12.5 mm/s、25mm/s、50mm/s（±3%）
Width of recording paper：Rolled thermosensitive
paper, the dimension of 6 channel thermal paper is
80mm (W) × 20m (L)
Recording paper：Thermal recording paperWorking mode
Manual mode and Automatic modeDisplay
Display Size: 7 “DisplayMode of operation
The key input Touch screen input(optional) -

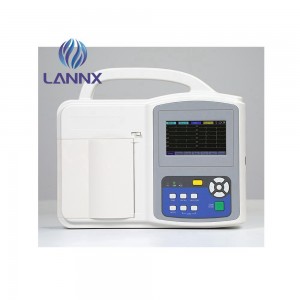

Health 6 Channel portable ECG machine uECG W6
Feature:
-100 patient information storage.
-Display:4.3 inch TFT LCD with touch panel.
-120 seconds ECG wave freeze and replay function.
-Digital filtering, resisting baseline drift, AC and EMG interference
-Built in USB/RS232 interface(ECGNET software optional)
-Built in rechargeable Li-ion battery support less than 3 hours continuously work.
-AC power supply at 90-240V@50/60Hz -

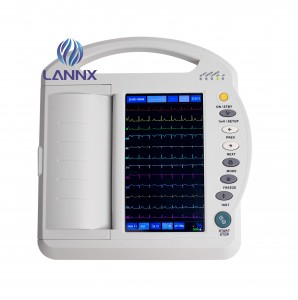

Cheap holter 12 Channel portable ECG machine uECG W12
Power Supply 220V±10%, 50Hz±2%, 75VA
14.8V 4400mA Li-poly rechargeable battery pack (DC)
Frequency response 0.05 to 150 Hz
Time constant ≥3.2s
Data acquisition 12 bits; 8000 samples/sec when printing, filtering and computing
Fuse Specification Φ5x20mm 3.15A 250V
Patient Cable standard 10 core
Report storage 200 reports in built-in memory, support external SD card
report presentation,review and re-printing.
Indicator Lead-off detectoin
Filter Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB)
AC filter: (50Hz or 60Hz, -20dB)
Drift filter: (0.5Hz,-3dB)
Machine weight 3.9kg
Gross weight 6.4kg
Carton size 44*41*24CM(1pc) -
Hopital ecg machine Monitor with analyzer 12 Channels
Feature:
-The machine can store over 400 ECG reports in its built-in flash.
-Standard RS232 and USB communication interfaces. Connect with PC via ECG workstation software.
-Sleep mode to save energy and extend LCD life
-The device can record real time clear and exact 12 channel ECG waveform and remark continually. The
remark includes: lead sign, sensitivity, paper speed, filter state, etc. -
Smart portable handheld holter moniteur ECG machine 3 Channel
Feature:
-The machine can store over 400 ECG reports in its built-in flash.
-Standard RS232 and USB communication interfaces. Connect with PC via ECG workstation software.
-Sleep mode to save energy and extend LCD life
-The device can record real time clear and exact 12 channel ECG waveform and remark continually. The
remark includes: lead sign, sensitivity, paper speed, filter state, etc.
