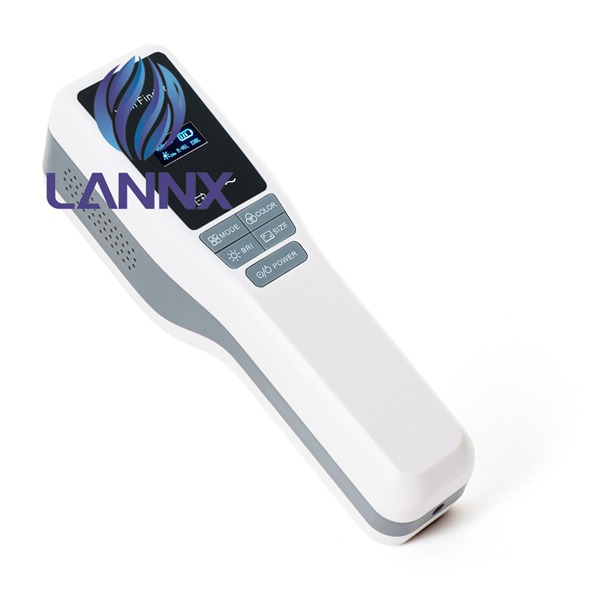

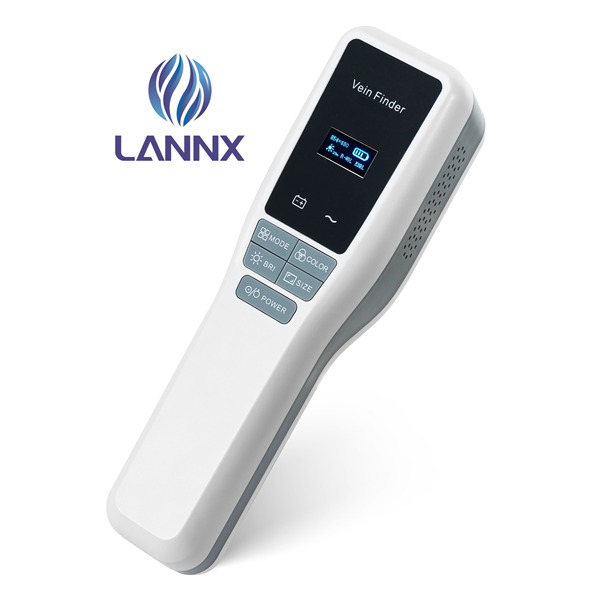

High-precision handheld infrared led vein finder uVF 410A

Feature:

-high resolution image: high precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images
-Multiple colors display:Grey white, green,green blackground,red, blue,blue background, optional for different skin group
-Multiple sizes and brightness display: normal, enhanced and depth, depth mode with three puncture position prompts: deep,medium, and shallow.
-Multiple fixed option: mobile stand, benchtop, and handheld

Send email to us

Product Detail

Product Tags

Feature:

Specification:
Light Source：Near Infrared
Projector :Resolution(pixel) 854*480
Projection Size ：Large, Medium, Small, Very Small
Projection Color ：Grey white, green, green background, red, blue, blue background
Projection ：Brightness，4 levels adjustable
Projection Mode： Normal, enhanced, depth
Depth Prompts :Deep, medium, shallow
Resolution Speed: 60frames/s
Resolution Deviation: WO.lOmm
Best Projection Distance :200±20mm
Minimum Identified Blood Vessel Diameter :>0.4mm
Wave Length :850nm
Maximum Detection Depth: W8mm
Sleeping Function: 30 minutes no operation goes into sleeping function
Display :0.96inch OLED display module, displaying pixels, battery,
brightness, color, mode, sleep
Main Unit Consumption :16W
Power :100 〜240V, 50/60HZ, Adapter： 12V, 2.5A
Battery :Internal 7.2V 2200mAh,charging timeW3h, working time >4h

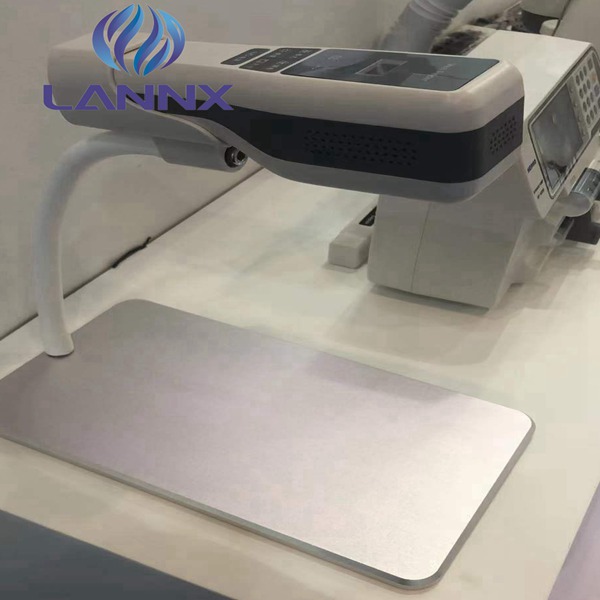

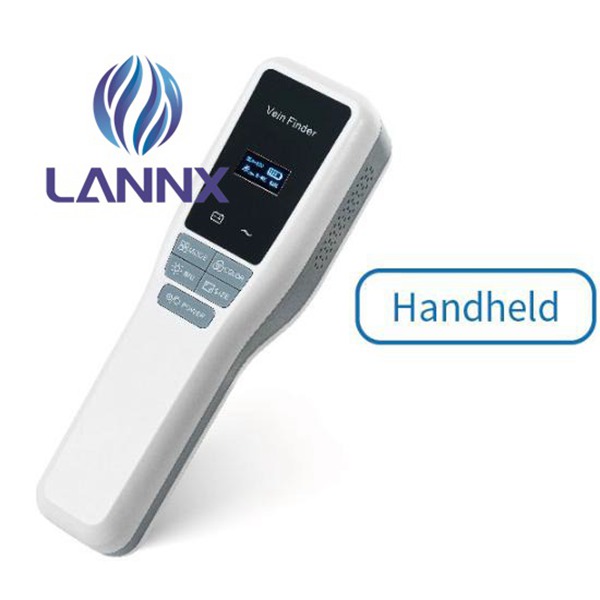

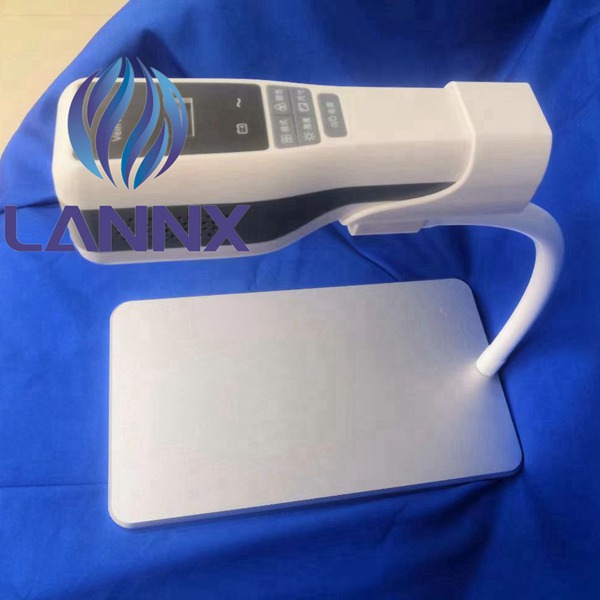

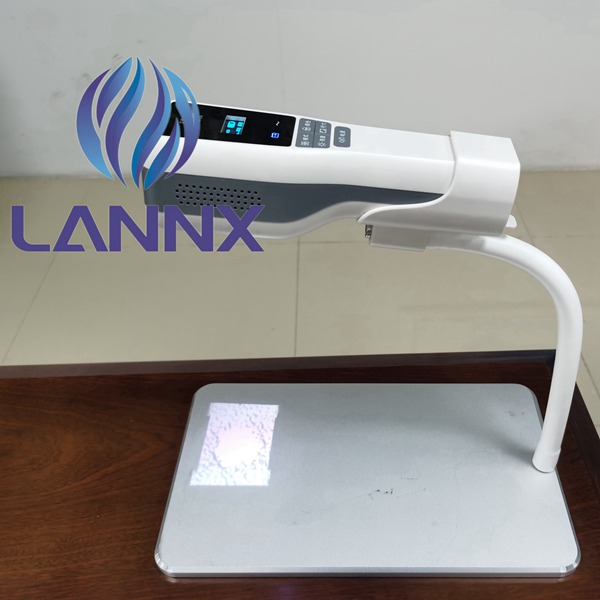

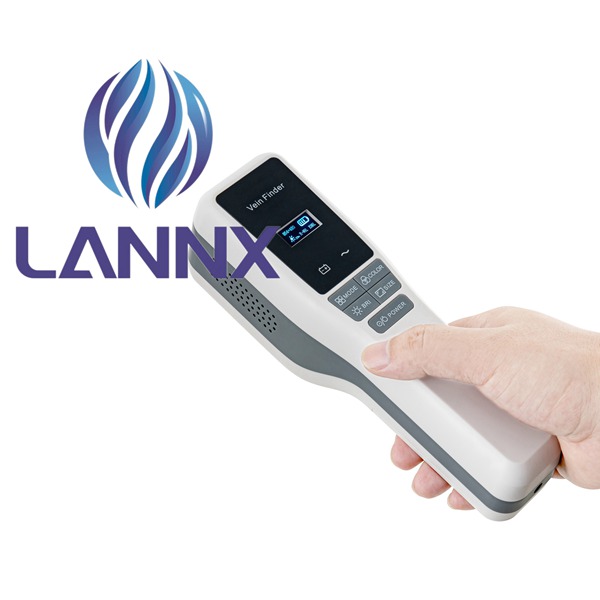

Fixed Option Mobile stand, benchtop, handheld
Weight :480g
Dimension: 220mm*65mm*65mm
Base: Mobile stand, benchtop, choose one of them
