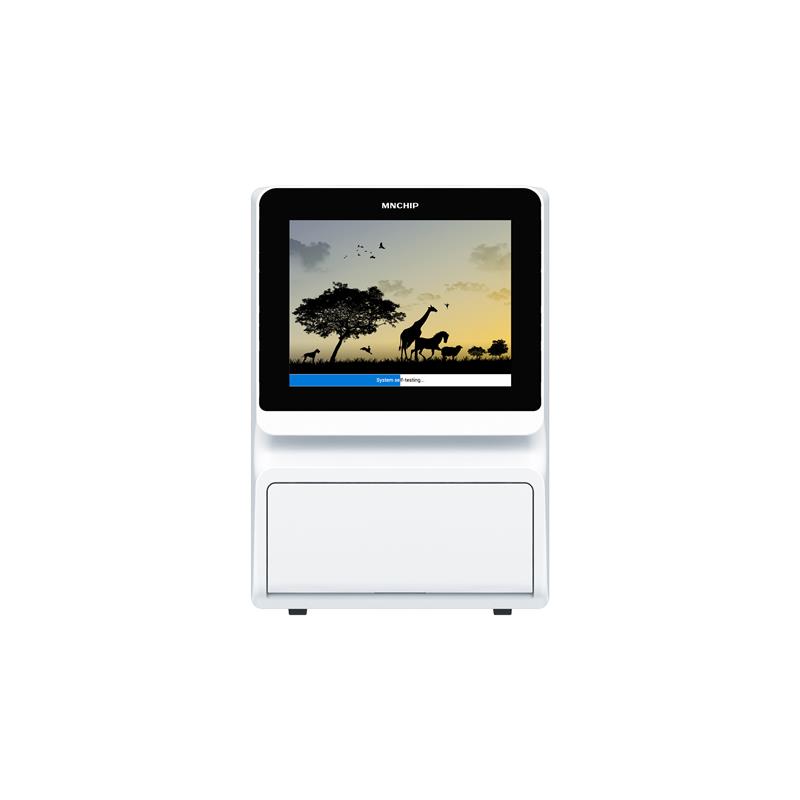

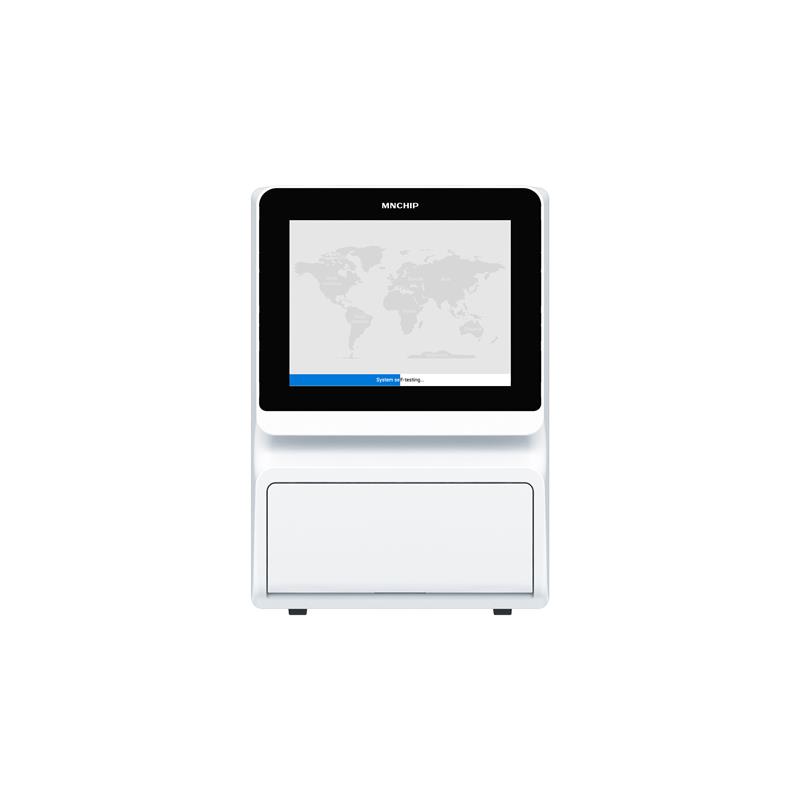

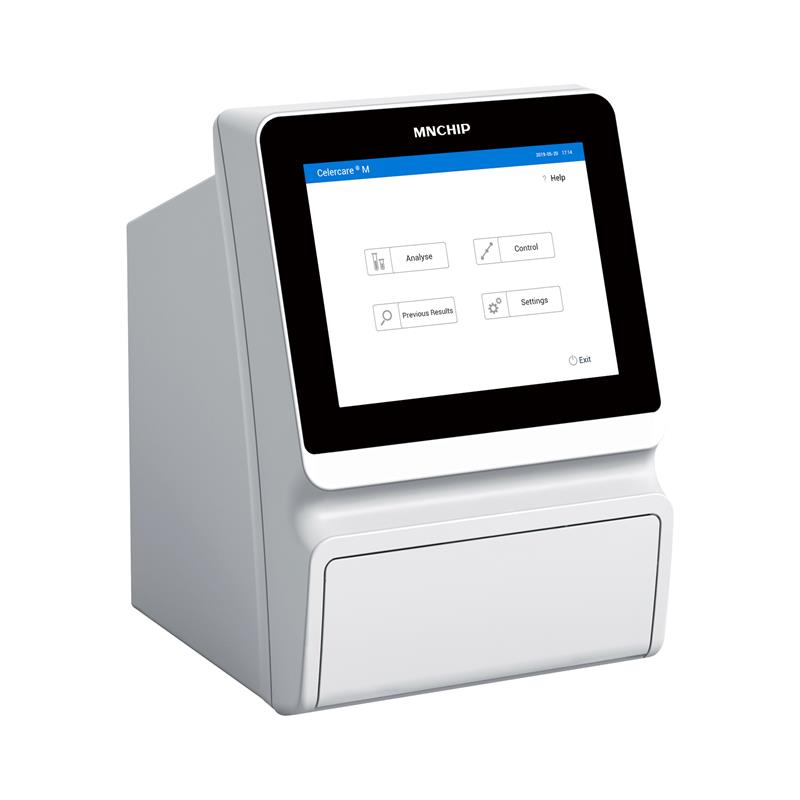

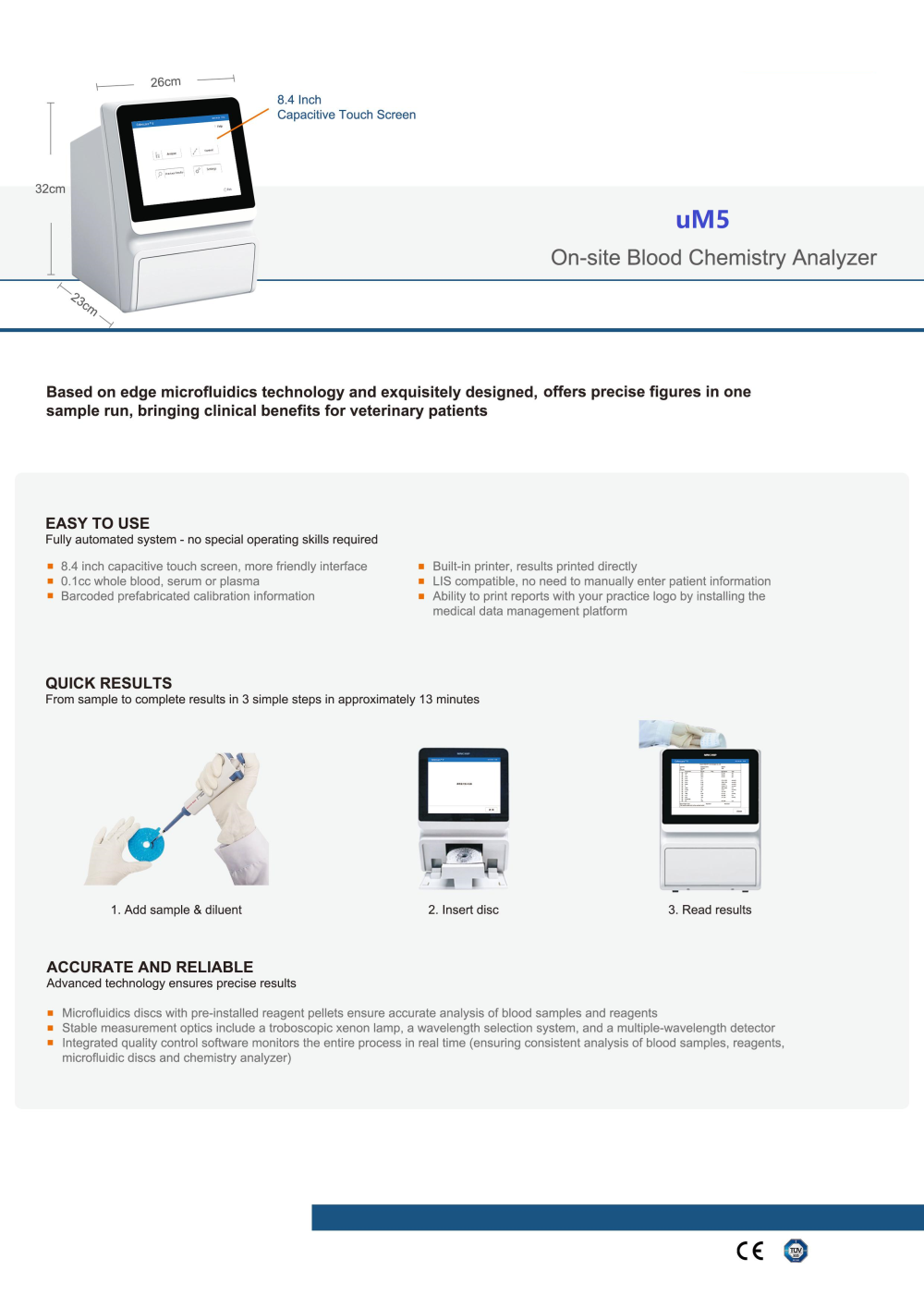

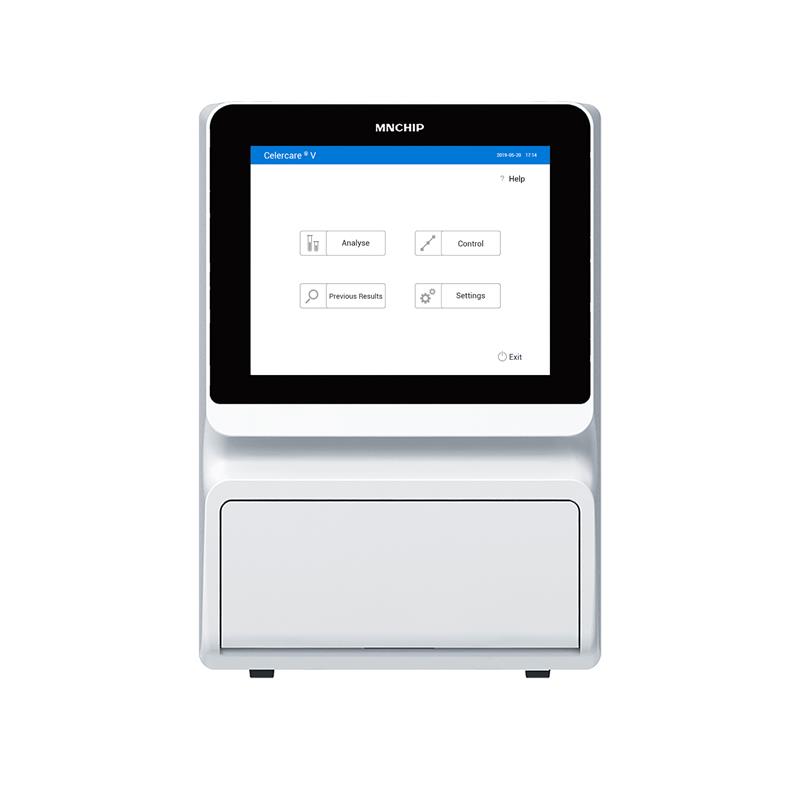

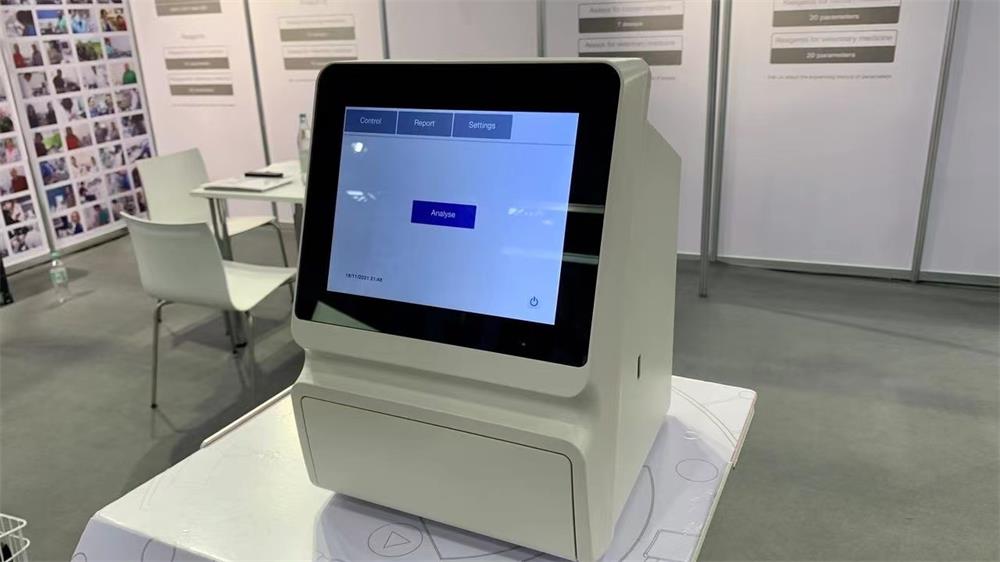

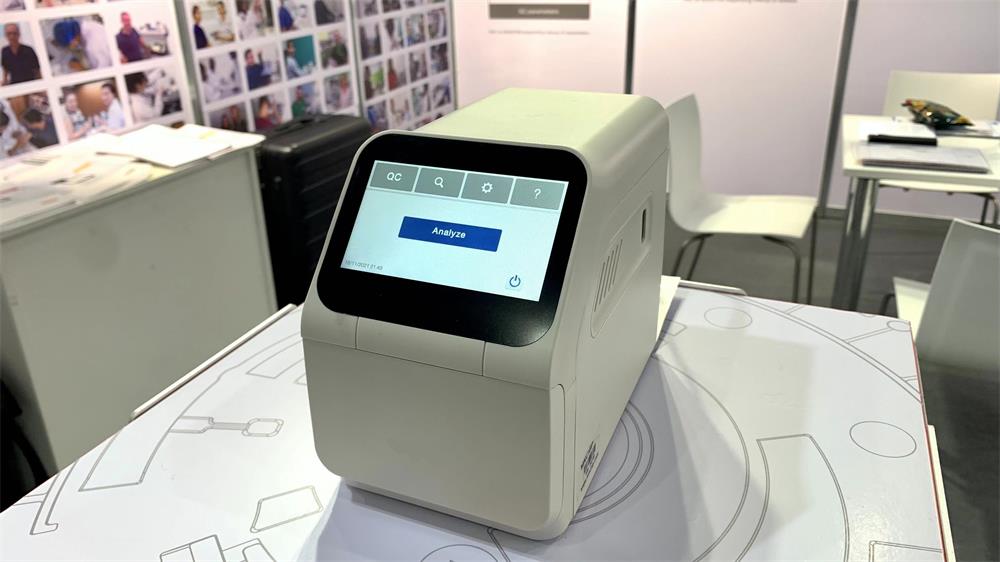

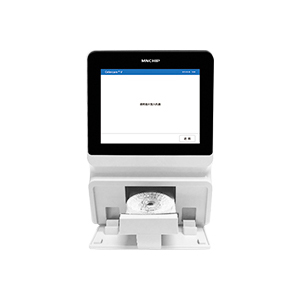

On-site Blood Chemistry Analyzer uM5
-full automatic system ,don’t need special operation skill
-8.4 inch capacitive touch screen, more friendly interface
-0.1cc whole blood, serum or plasma
-barcode prefabricated calibration information

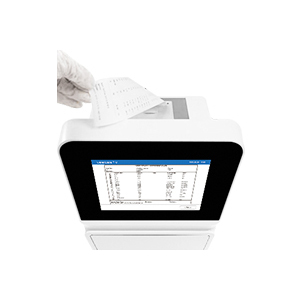

-Built-in printer, result printed directly
-LIS compatible, no need to manually enter patient information
-result can print through and office printer or though a data management platform(MMDMP)
|
Product Specification |
|
| Product Name | On-site blood chemistry analyzer |
| Sample Type | Whole blood(lithium-heparinized), Plasma(lithium-heparinized), Serum |

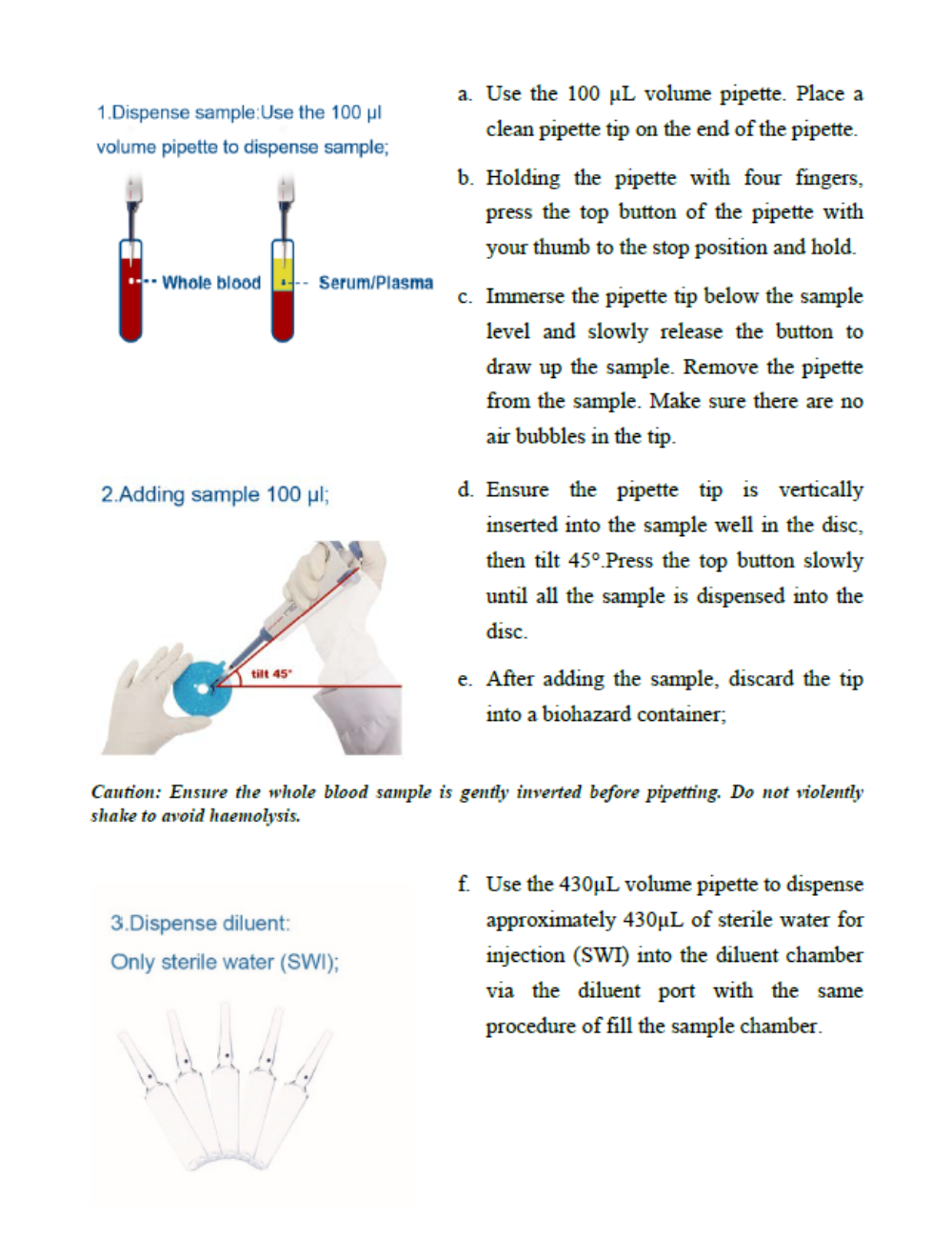

| Sample Size | 100μl |
| Time to Results | About 13 minutes |

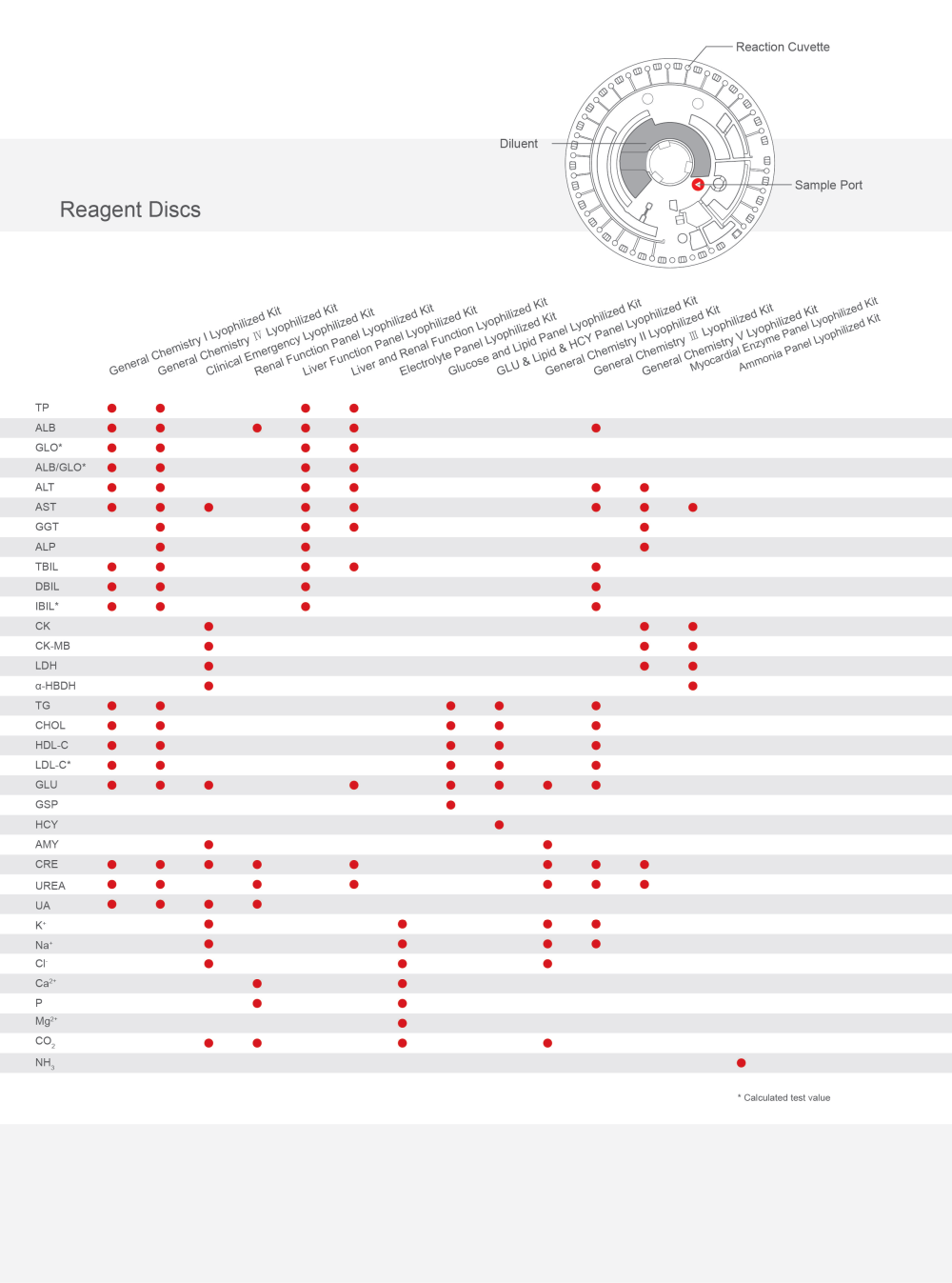

| Parameters | Up to 17 parameters in one test, 32 parameters configured into 9 profiles |
| Reagent Disc | Disposable, prepackaged with self-contained lyophilized reagent |
| Calibration | Automatic self-calibration by scanning QR Code on the aluminum foil pouch |
| Quality Control | Built-in Realtime Quality Control(RQC) system |
| User Interface | Full-color touch screen |
| Connection Interfaces | WLAN, USB port, Ethernet interface, compatible with HIS |
| Print Mode | Built-in printer, result printed directly |
| Reaction Temperature | 37℃±0.1℃ |
| Data Capacity | More than 50,000 sets of patient and quality control data |
| Operation Environment | Temperature 10-30℃, Humidity 40-85% |
| Screen size | 8.4 inch |
| Power Requirement | AC 100V-240V, 50-60HZ |
| Dimensions | 34(L)*38(W)*32(H)cm |
| Weight | 5.5kg |
