Single Head Linear Array Wireless Color Doppler Ultrasound Probe uRason CW3

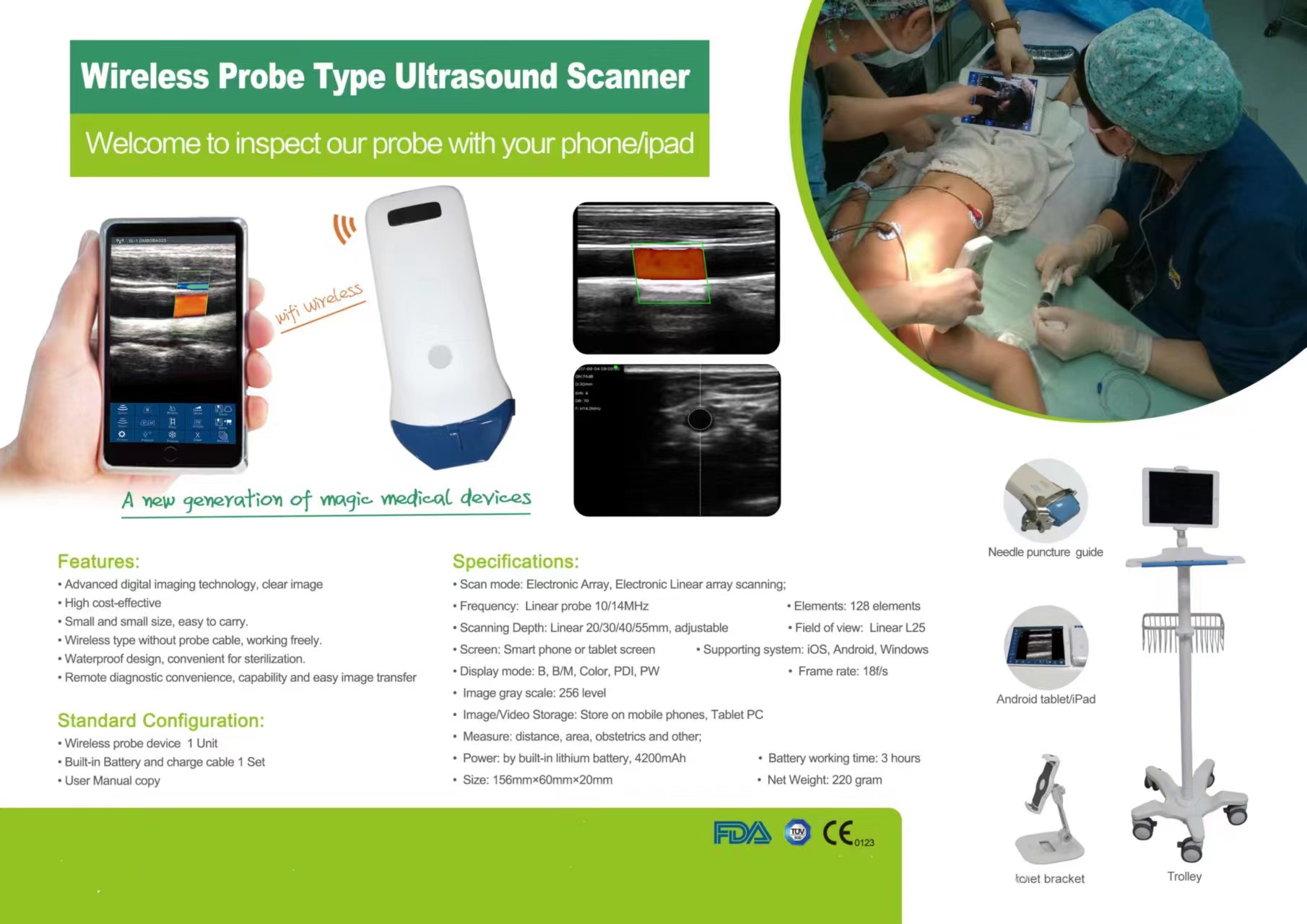

Feature:
-Advanced digital imaging technology, clear image
-high cost-effectiveness
-small and smart, easy to carry.
-wireless type without probe cable, working freely.
-waterproof design, convenient for sterilization.
-remote diagnostic convenience, capability, and easy image transfer
Specifications
-Scan mode: Electronic Array, Electronic Linear array scanning:
-Frequency: Linear probe 10/14MHz
-Elements: 128 elements
-Field of view: Linear L25
-Scanning Depth: Linear 20/30/40/55mm, adjustable
-Supporting system: iOS, Android, Windows
-Screen: Smart phone or tablet screen
-Display mode: B B/M Color,PDL PW
-Frame rate: 18f/s
-Image gray scale: 256 level
-lmage/Video Storage: Store on mobile phones, Tablet PC
-Measure: distance, area, obstetrics and other;
-Power: by built-in lithium battery, 4200mAh
-Battery working time: 3 hours
-Size:156mmx60mmx20mm
-Net Weight: 220 gram

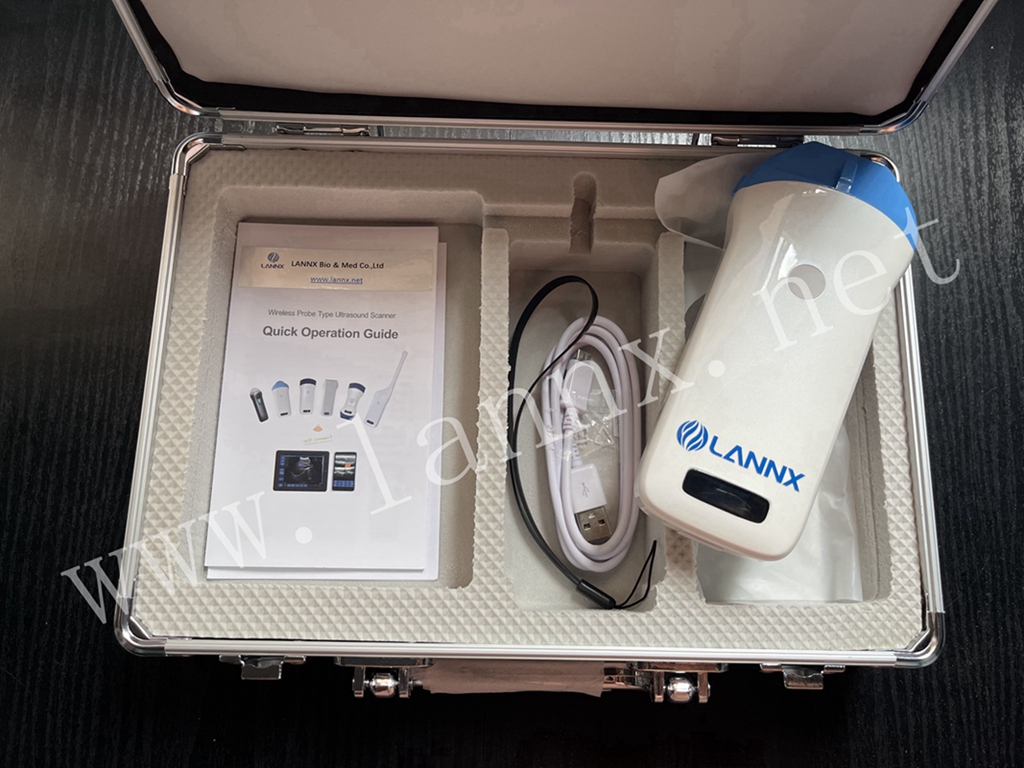

Standard Confiquration:
-Wireless probe device 1 Unit
-Built-in Battery and charge cable 1 Set
-User Manual copy
FAQ
1. How many channels does the probe support?
32 channels
2. Does the probe come with any additional accessories?
We will match with hanging string, portable bag, charger.
3. How easy is it to set up and use the probe?
Please view the video below to see how to use the probe.
4. Are there any special requirements for using the probe?
Pasting the gel on the probe before using.
5. What is the size and weight of the probe?
156mmx60mmx20mm, 220g.
