Single Head Scanner-Linear Array Wireless Ultrasound uRason W4
Feature：
- linear array wireless probe (96-element 16-channel, 7.5MHz, with inverted harmonic function, gray head) As a visualized precision medical tool, this product is a good tool for emergency quick check and preliminary screening. It not only helps to improve the work efficiency of medical staff, reduces labor intensity and work pressure, but also helps to improve the level of diagnosis and treatment, and achieve various diagnosis and treatment. Visualization and precision, thereby minimizing diagnosis and treatment errors, complications, and sequelae, and avoiding medical accidents and medical disputes caused by this to the greatest extent.
Technical Specifications：
Scanning method: electronic array scanning
Probe frequency, scanning depth, acoustic head radius, scanning angle: 3.5MHz/5MHz,90/160/220/305mm,6Omm，60°
Display mode: B, B/M, color Doppler ultrasound version has CF, Pw, PDI
Image adjustment: gain, focus, inverted pulse harmonics, noise reduction
Movie playback manual and automatic playback, the number of playback frames can be set to 100/200/500/1000
Puncture assist function in-plane puncture guide line function, out-of-plane puncture guide and automatic
blood vessel measurement function, needle tip development enhancement function
Image frame rate: black and white 19f/s, color Doppler ultrasound 15f/s
Image saving: jpg. avi, DICOM multiple formats
Battery life: The probe's built-in battery can work for 2~5 hours(different probes are different and are affected by whether they are continuously scanning)

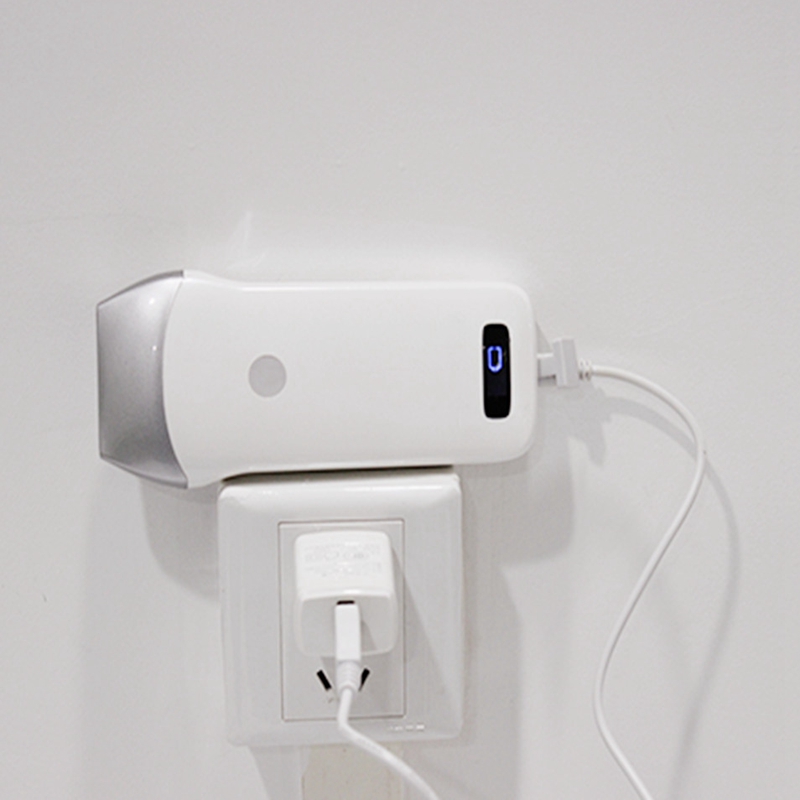

Charging method: USB charging or wireless charging, charging time is 2 hours
Measurement functions distance, area, circumference, heart rate, obstetrics
Size: 156mm×60mm×20mm
Weight 220~250g
Probe and host connection method wifi wireless connection-wifi type: 802.11n/2.4G/5G dual frequency 450Mbps
Consultation function realize remote consultation through the Internet directly through mobile phones and tablets, and support multiple mobile phones/tablets on the same screen for consultation on the same screen.

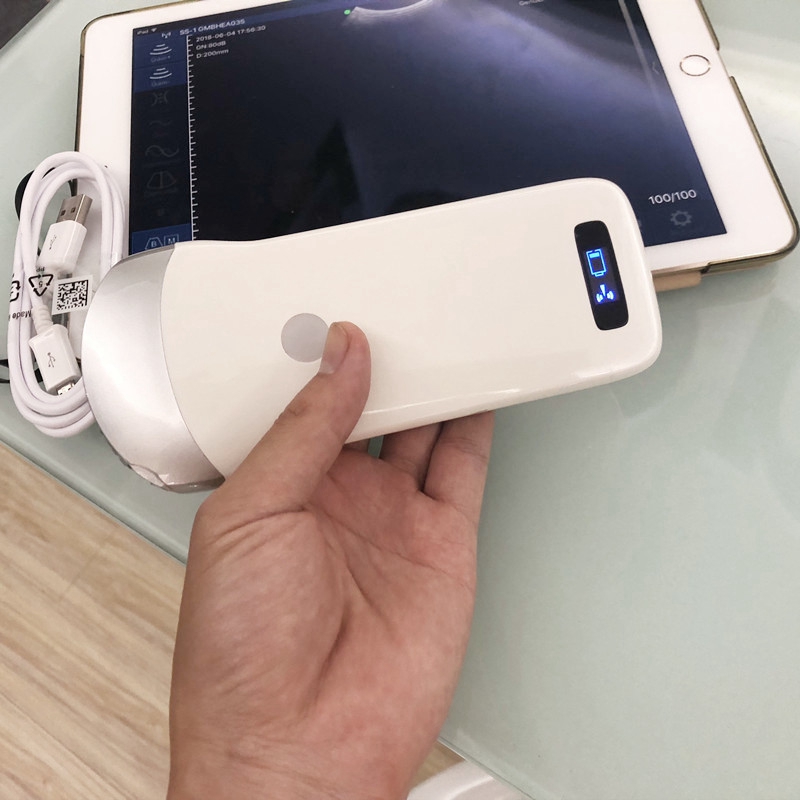

Software support system: Apple i0S/Android Android/windows system
FAQ
1. Can this wireless ultrasound connect with iPhone?
Yes, the wireless ultrasound can connect with Window/iOS/Android/Tablet.
2. How long for the charing time?
It is about 2 hours charging.
3. Is this model for human?
Correct, this model uRason W4 is for human.

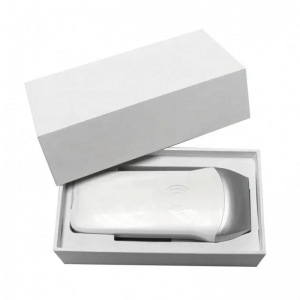

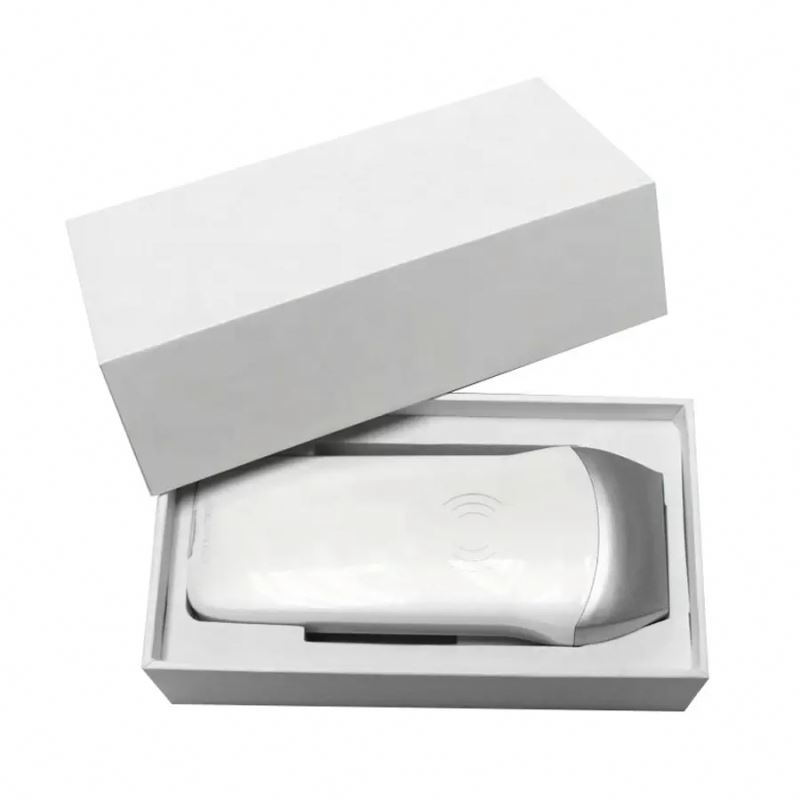

4. Can you tell me the carton size and weight for mobile ultrasound?
Yes, the carton size is 25cm*12cm*12cm and the weight is 1KG.
5. How long can I get the mobile ultrasound?
If by express, the shipping time is about 5-10 days. Stock goods ready to ship.
