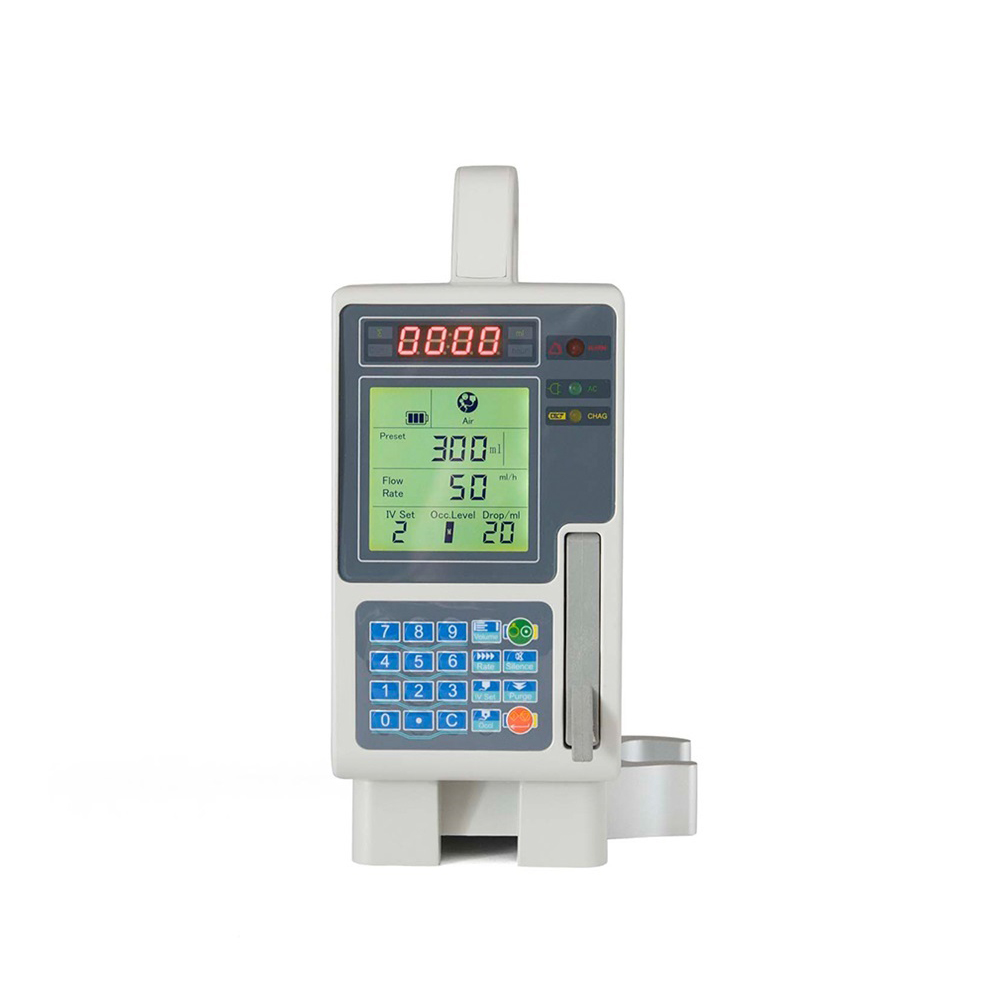

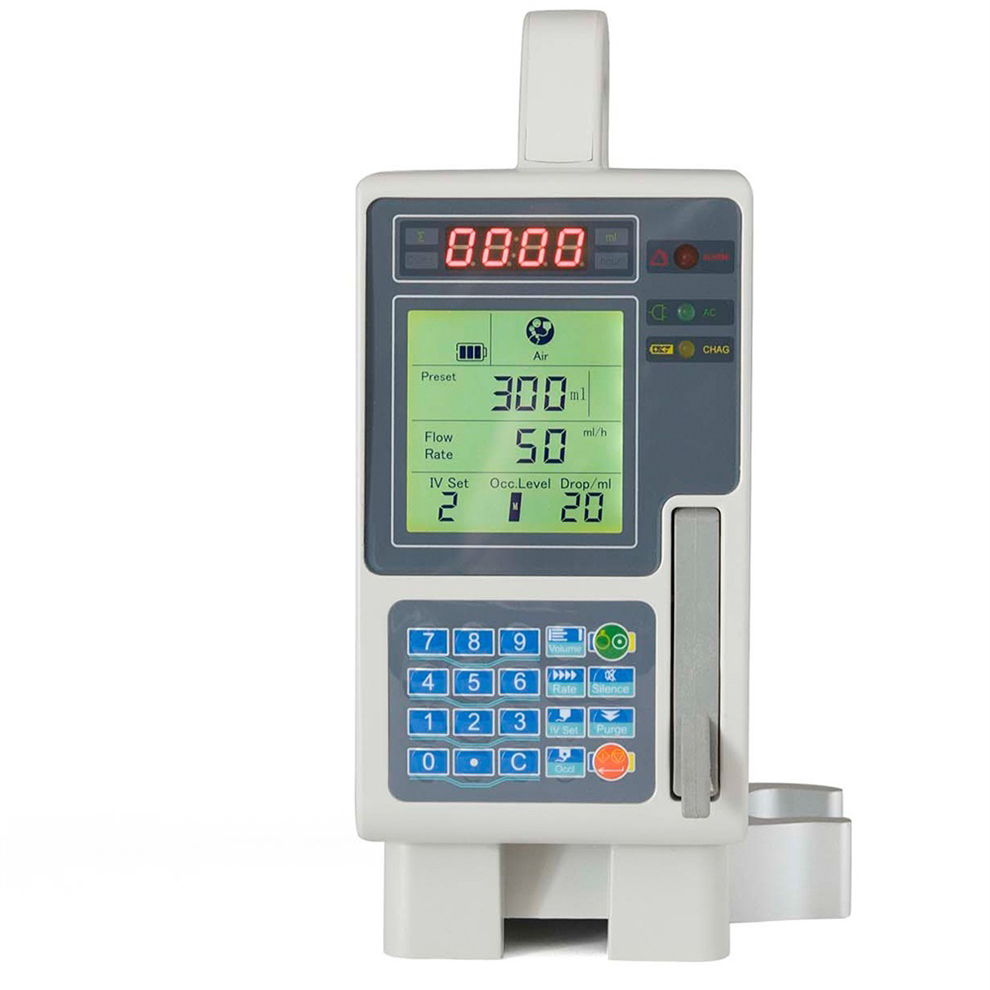

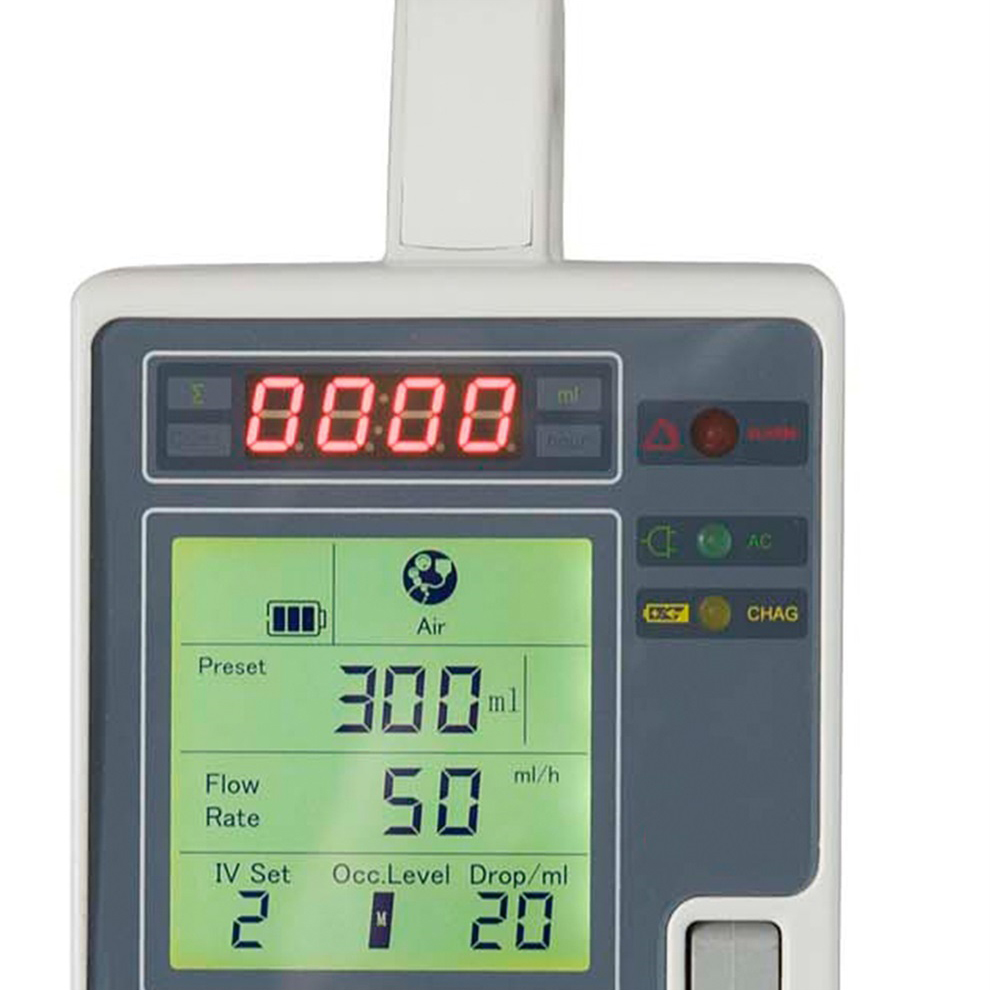

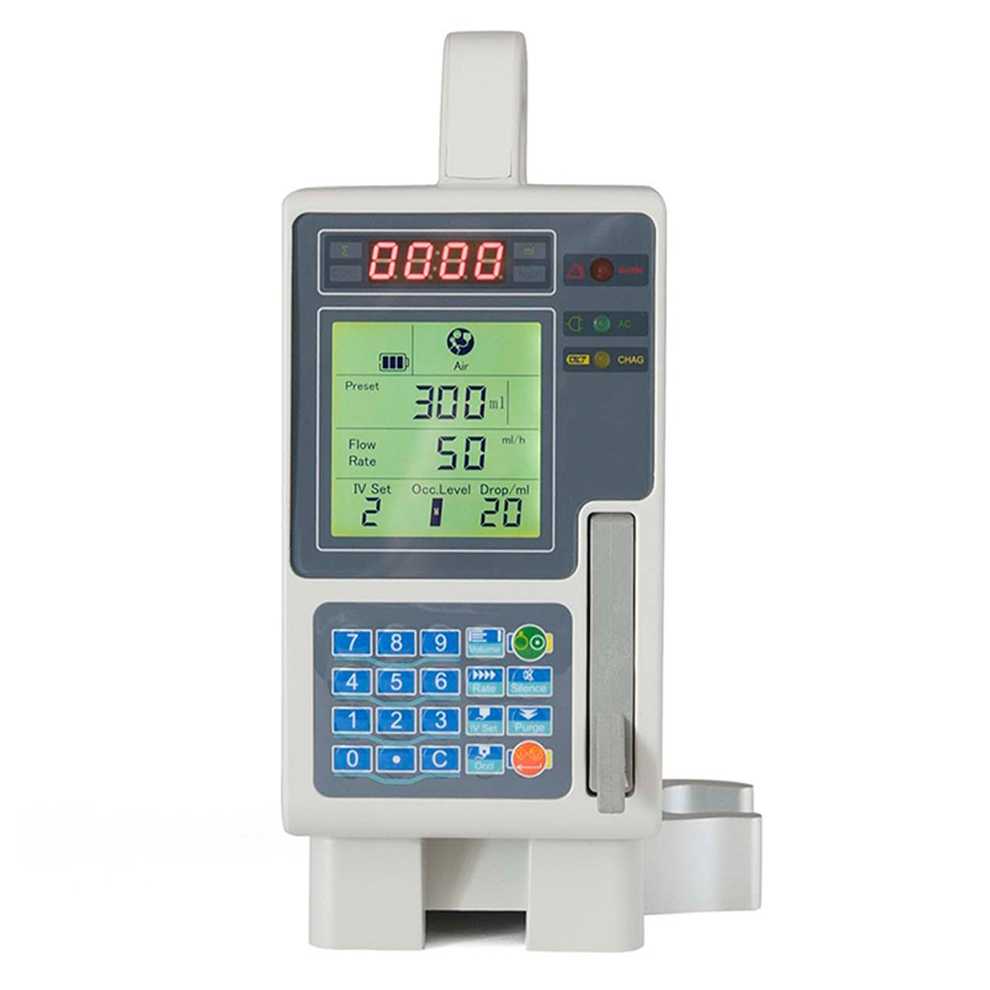

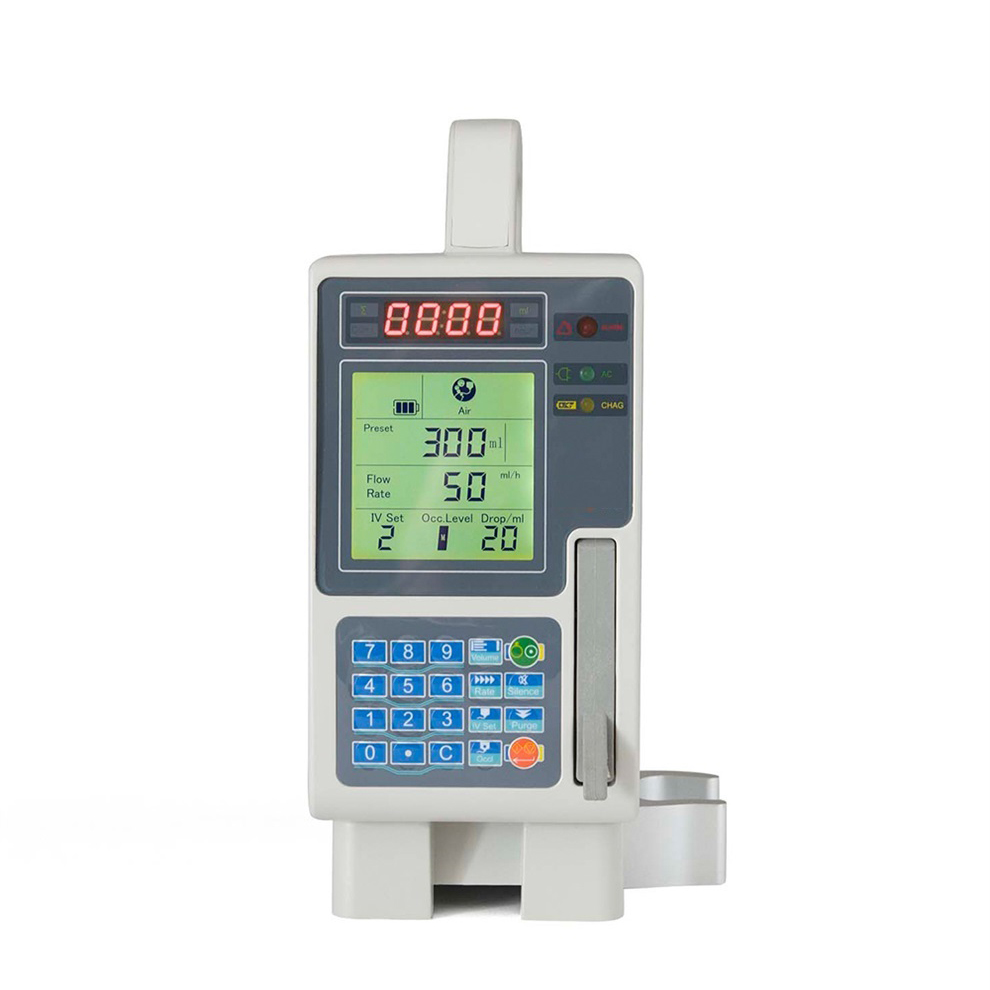

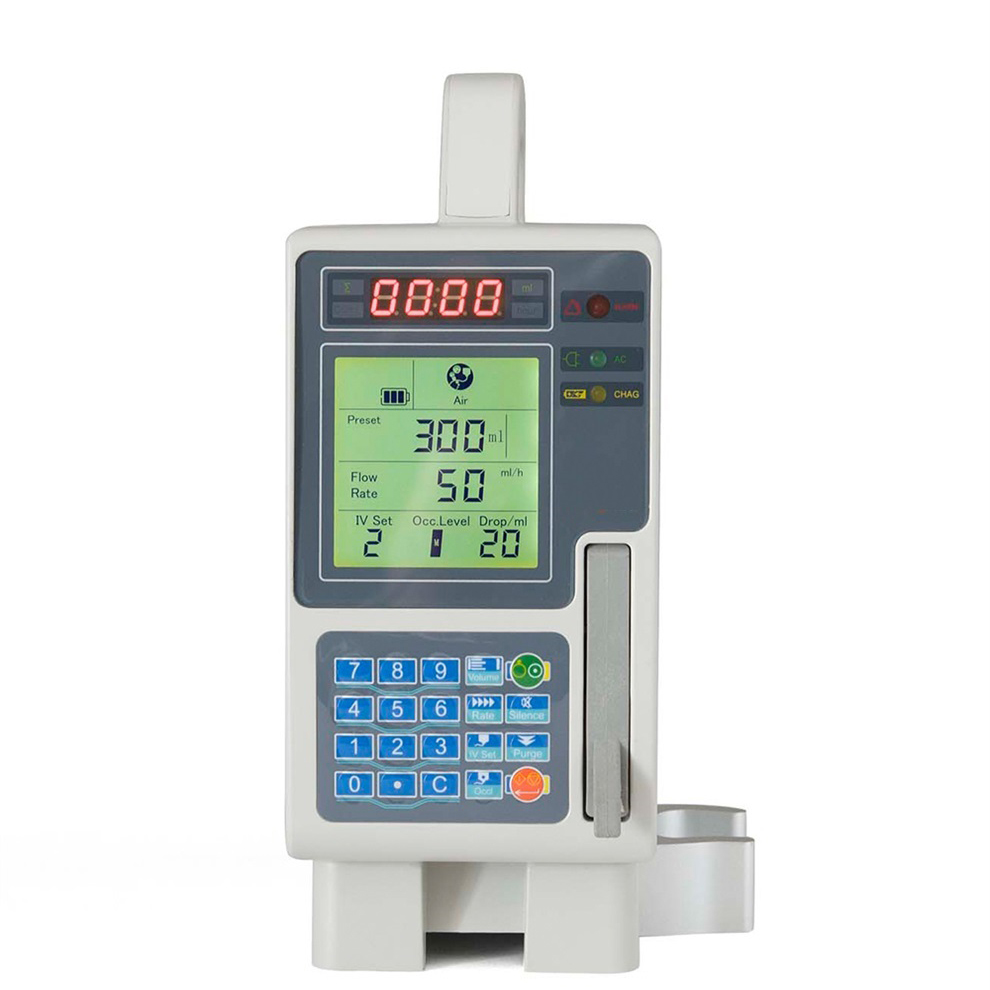

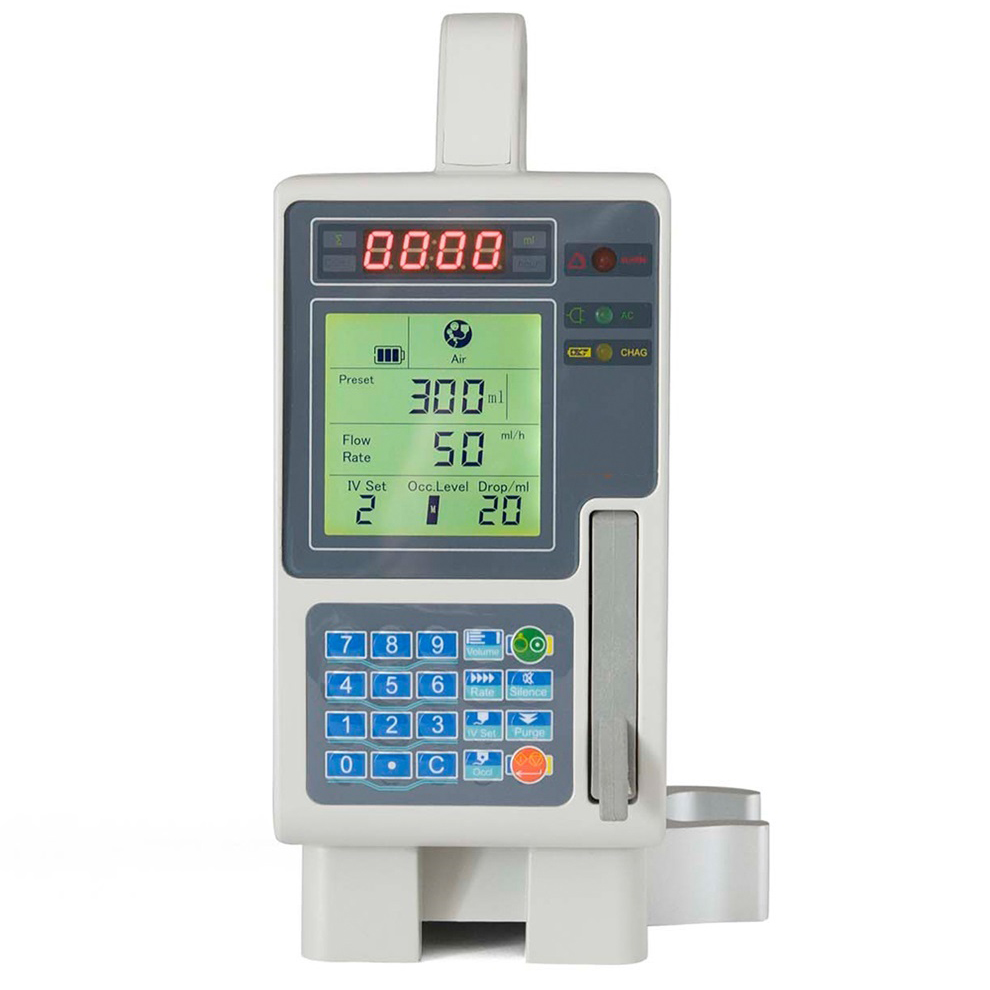

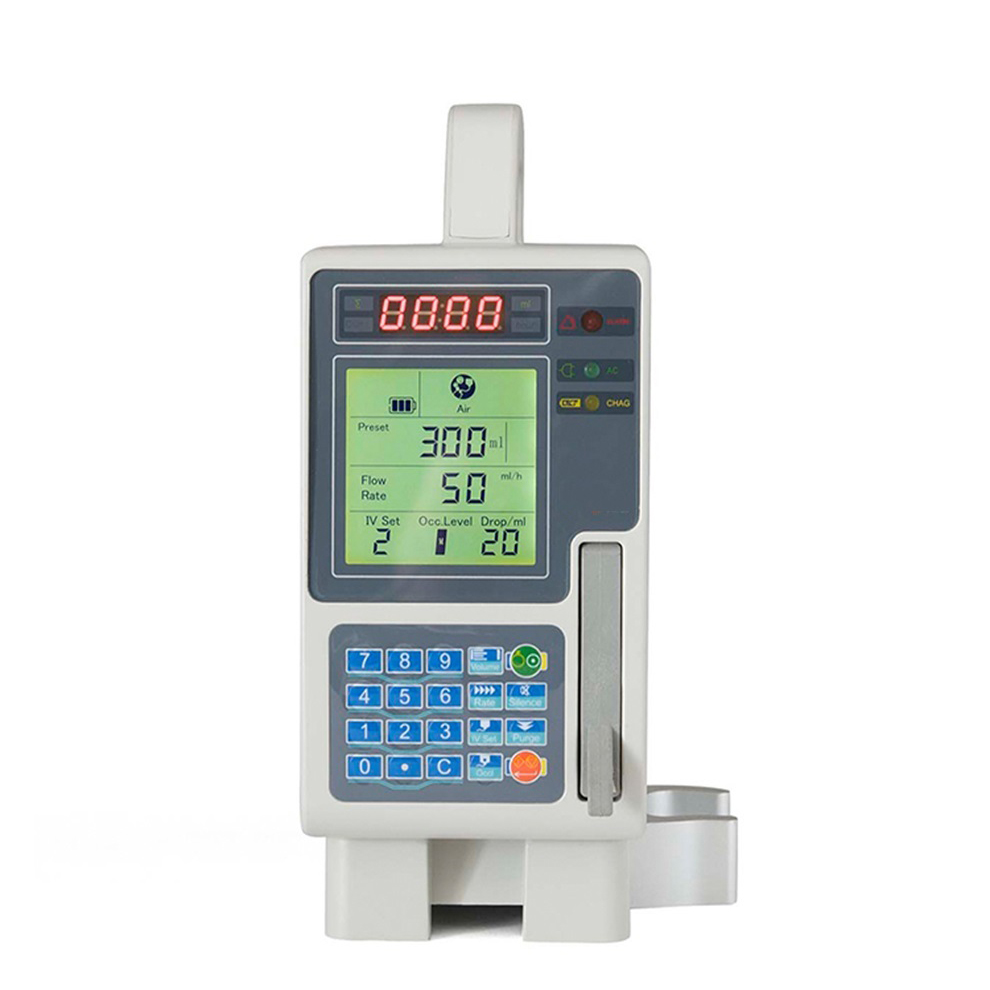

Infusion Pump uINF XK
1.Built-in thermostat: 30-45℃ adjustable.
This mechanism warms IV tubing to increase infusion accuracy.
This is a unique feature compare to other Infusion Pumps.
2. Applicable for adult, Paediatrics and NICU (Neonatal).
3. Anti-free-flow function to make infusion safer.

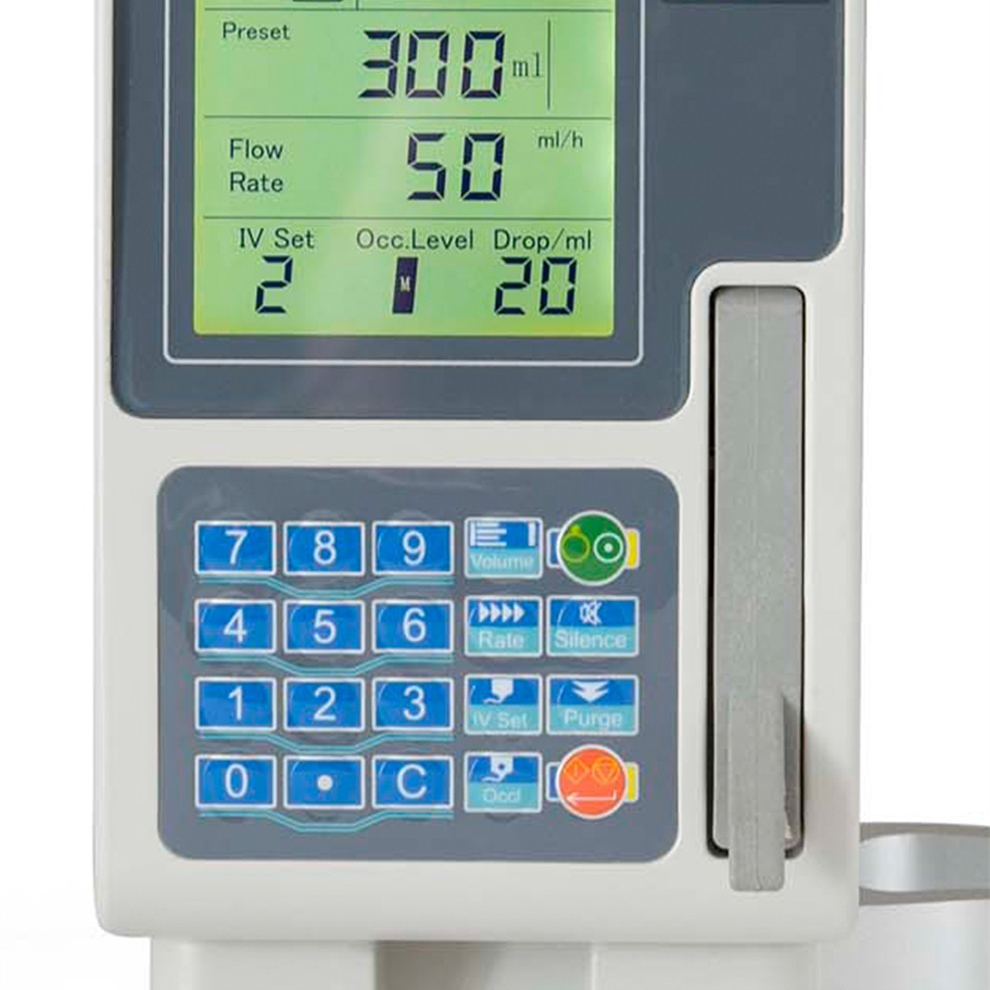

4. Numeric keyboard for fast data input.
5. Five levels occlusion sensitivity
6. Nurse call system applicable.
| Model | uINF XK |
| Pumping Mechanism | Curvilinear peristaltic |
| IV Set | Compatible with IV sets of any standard |
| Flow Rate | 1-1300 ml/h (in 0.1 ml/h increments) |
| Purge, Bolus | Purge when pump stops, bolus when pump starts, rate at 1100 ml/h |
| Accuracy | ±3% |
| *Inbuilt Thermostat | 30-45℃, adjustable |
| VTBI | 1-9999 ml |
| Infusion Mode | ml/h, drop/min, time-based |
| KVO Rate | 1-5 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery,
AC power off, motor malfunction, system malfunction, standby |
| Additional Features | Real-time infused volume, automatic power switching,
mute key, purge, bolus, system memory, key locker, nurse call |
| Occlusion Sensitivity | 5 levels |
| Air-in-line Detection | Ultrasonic detector |
| Wireless Management | Optional |
| Drop Sensor | Optional |
| Nurse Call | Available |
| Power Supply, AC | 110/230 V (optional), 50-60 Hz, 20 VA |
| Battery | 9.6±1.6 V, rechargeable |
| Battery Life | 6 hours at 30 ml/h |
| Working Temperature | 10-40℃ |
| Relative Humidity | 30-75% |
| Atmospheric Pressure | 700-1060 hpa |
| Size | 233*146*269 mm |
| Weight | 3 kg |
| Safety Classification | Class Ⅰ, type CF |
