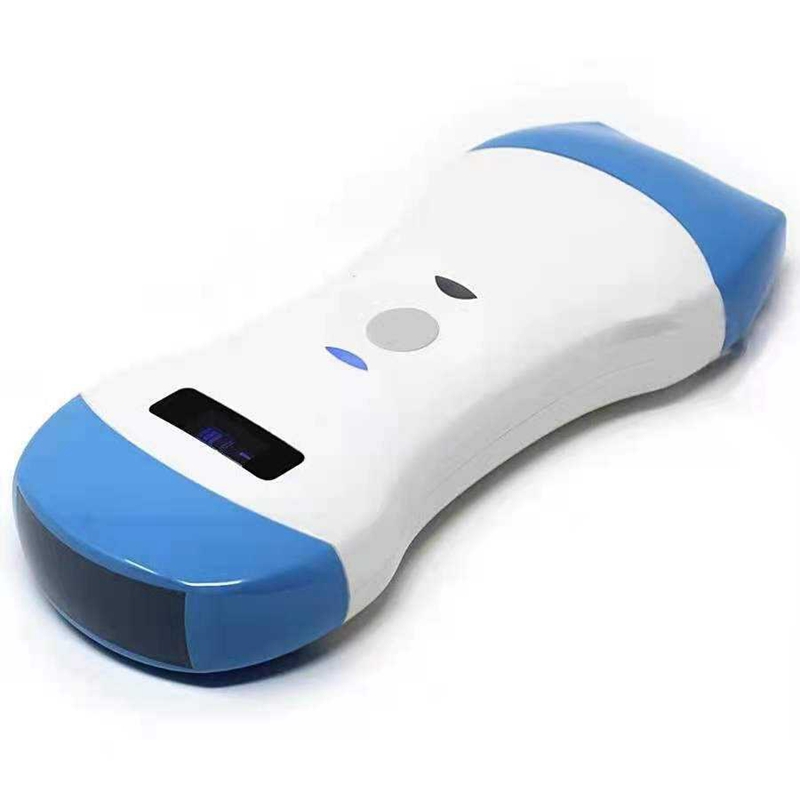

Dual Head Convex & Linear Array Wireless Ultrasound Probe uRason W7
Feature:
-Advanced digital imaging technology, clear image
-high cost-effectiveness
-small and smart, easy to carry.
-wireless type without probe cable, working freely.
-waterproof design, convenient for sterilization.
-remote diagnostic convenience, capability, and easy image transfer

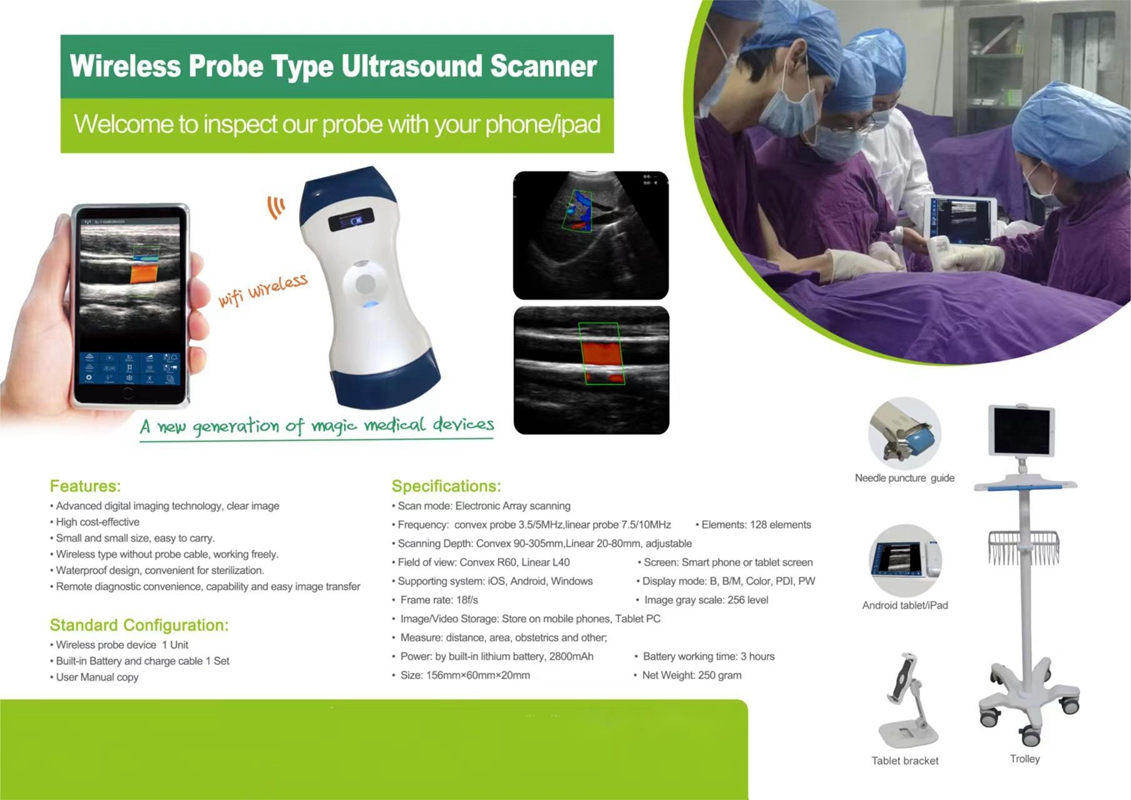

Specification:
-Scanning mode: Electronic phased array
-Probe elements: 128
-Image gray scale: 256 level
-Display mode: B, B/M, and Color, PW, PDI
-Probe frequency and scan depth, head radius/width, scan angle(convex):
-Convex head 3.5MHz/5MHz
-Linear head 7.5MHz/10MHz
-Field of view: convex R60, Linear L40
-Scanning Depth: Convex 90-305mm, Linear 20-80mm, adjustable
-Image Adjust: Gain, DYN, Focus, depth, Harmonic, Denoise
-Puncture assist function: the function of in-plane Puncture guide line, out-of-plane Puncture guide line, automatic blood vessel
measurement.
-Measure: Length, Area, Angle, heart
-Image frame rate: 18 frames/second
-Battery working time: 3-5 hours
-Charge: by USB cable charger
-Dimension: 156×60×20mm
-Weight: 250g
-Wifi type: 802.11g/20MHz/5G/450Mbps
-Working system: Apple iOS and Android, Windows

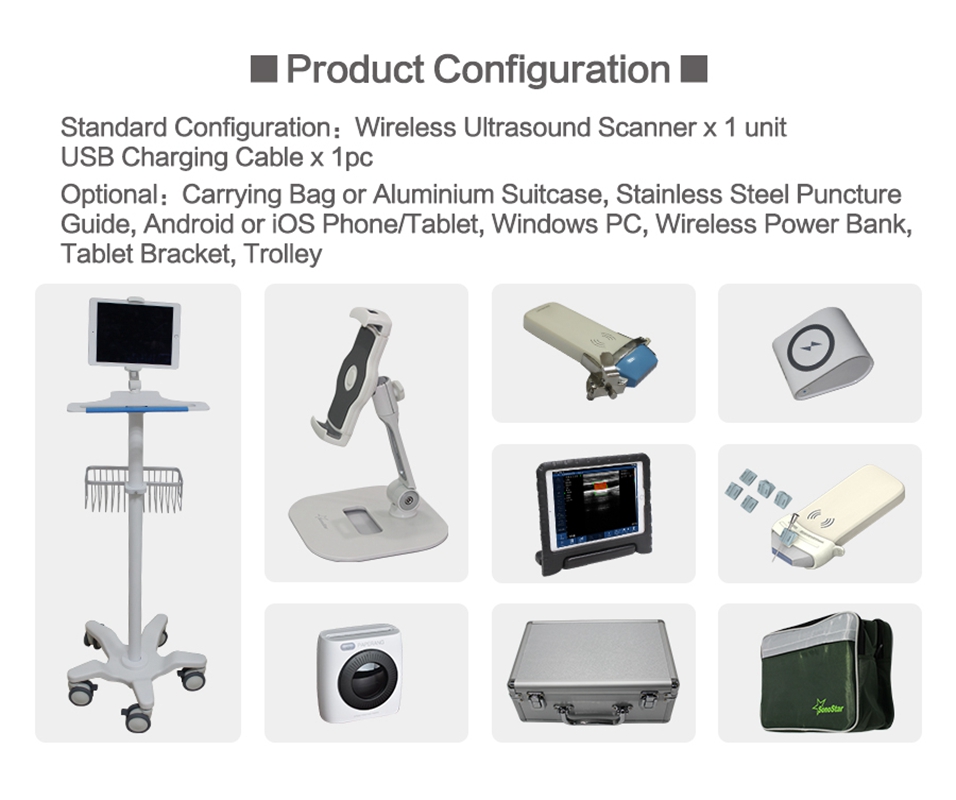

Product Configuration:
Standard Configuration：Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc,Carrying Bag or Aluminium Suitcase(options)x 1pc.
Optional：Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley.
FAQ
1. What is the elements for this mobile ultrasound probe?
This model uRason W7 is 128 elements.
2. What is the frequency for the probe?
-Convex head 3.5MHz/5MHz
-Linear head 7.5MHz/10MHz
3. Where I can download the APP?
There have barcode in the menu, you can scan it to download the APP
4. How to connect the phone with ultrasound probe?
There have instruction menu to teach you how to connect the phone, we also have the
5. What is the lead time?
Stock goods ready to ship.
